48v 100ah 200ah vairumtirdzniecības mājas hibrīda jauda sienas glabāšanas uzlādējams saules litija lifepo4 akumulators

2023-08-18 06:01

Specifikācija

Modeļa Nr	AIN HP5.1L-A1	AIN HP7.6L-A1	AIN HP10.2L-A1
Nominal Parameters
spriegums	48/51.2V	48/51.2V	48/51.2V
Jauda	100Ah	150Ah	200Ah
Enerģija	5.12kwh	7.68kwh	10.24kwh

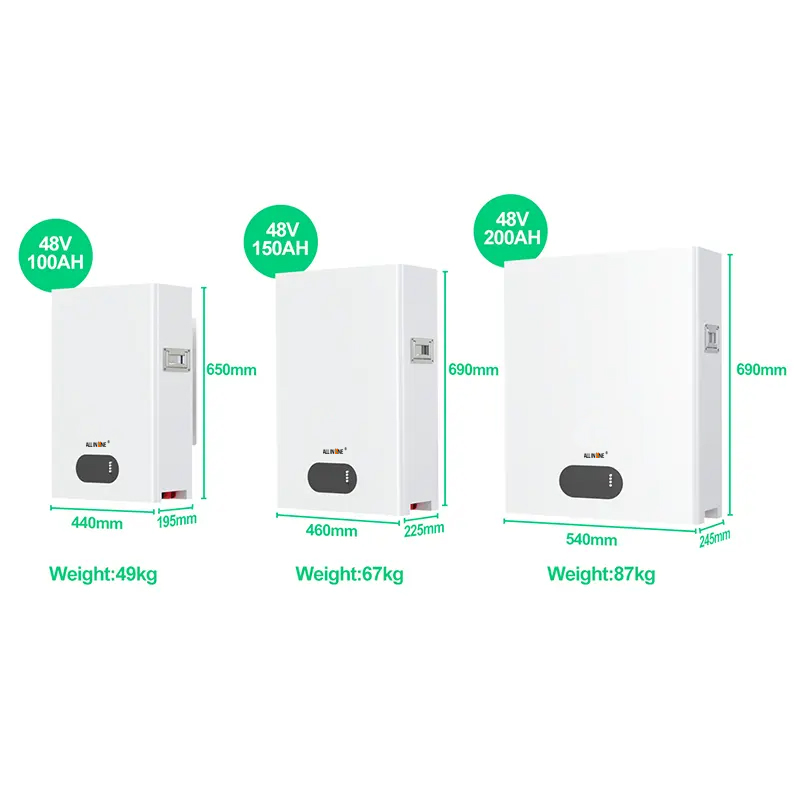

Dimensions (L xWxH)	440x695x195mm	460x690x225mm	540x690x245mm
Svars	49kg	67kg	87kg
Pamata parametri
Life Times (25C)	20 Years	20 Years	20 Years
Life Cycles (80% DOD, 25°C)	5000 Cycles	5000 Cycles	5000 Cycles
Storage Time /Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C
Darbības temperatūra	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity
Uzglabāšanas temperatūra	0°C līdz 45°C pie 60+/-25% relatīvā mitruma	0°C līdz 45°C pie 60+/-25% relatīvā mitruma	0°C līdz 45°C pie 60+/-25% relatīvā mitruma
Standarta litija baterija	1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
Enclosure Protection Rating	IP31Rating
Electrical Parameter
Operation Voltage	40-57.6Vdc	40-57.6Vdc	40-57.6Vdc
Max charging Voltage	58Vdc	58Vdc	58Vdc
Max charging and Dis charging Current	100A	150A	200A
Maksimālā jauda	5120W	7680W	10240W

Mūsu rūpnīca

ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.

BUJ

J: Vai jūs esat tirdzniecības uzņēmums vai ražotājs?
A: We are ALL IN ONE original factory.

J: Vai man var būt pārbaudāmi paraugi? Un kāds ir parauga pasūtījuma izpildes laiks?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

J: Vai jūs sniedzat pēcpārdošanas servisu?
A: Jā, garantija ir 12 mēneši, ja šajā laikā rodas kādas kvalitātes problēmas, mēs varam nosūtīt jaunu kā nomaiņu.

J: Vai jūs pieņemat OEM / ODM?
A: Jā, tas ir pieejams.

J: Vai akumulatora jauda ir reāla?
A: Visas mūsu akumulatora baterijas ar A pakāpi, 100% jaunas un reālas ietilpības.

J: Kāda veida sertifikāti jums ir?
A: Ja pasūtījuma daudzums ir liels, mēs varam nodrošināt CE, ROHS, FCC, IEC62133, MSDS, UN38.3.

J: Vai jums ir MOQ?
A: Nav ierobežots. Neliels pasūtījums arī laipni gaidīts. Lielākam daudzumam ir labāka cena, mēs pārbaudīsim labāko cenu jums.

J: Kāds ir jūsu apmaksas termiņš?
A: Mēs pieņemam T / T, Paypal, Alibaba maksājuma veidu un tā tālāk.

Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
