BMS iebūvēts ilgs kalpošanas laiks LiFePO4 12V 100Ah akumulators

2023-11-07 05:54

Specifikācija

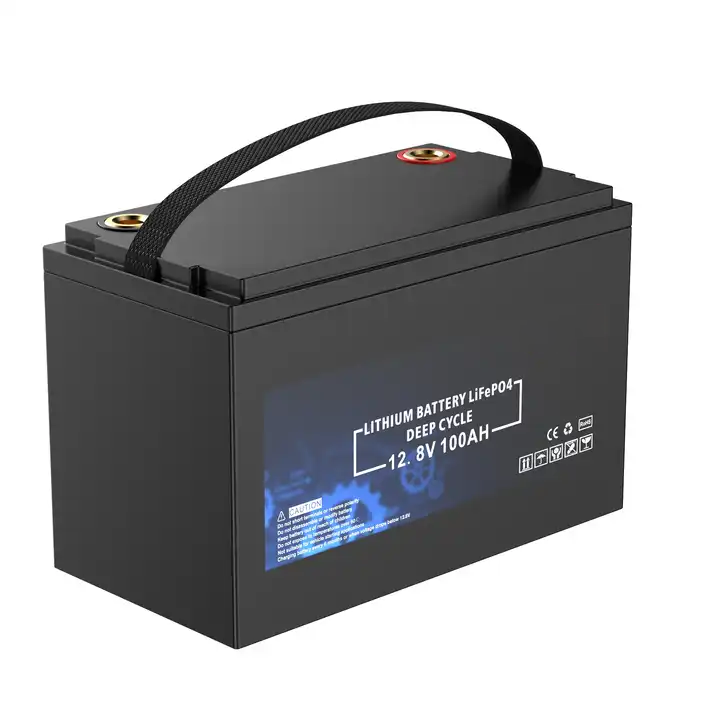

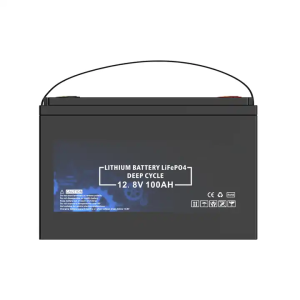

12V 100Ah LifePO4 Battery Pack With 100A BMS
ElectricNominālais spriegums12,8 V
 Nominālā ietilpība100Ah
 Stored energy1280wh
 Cikla dzīve6000 times (Cycle @RT, 1C rate,85%D\OD)
 Konfigurācija4S1P
 Self discharge< 3% per month


Standarta
Maksa

Uzlādes metodeCC/CV : Constant Current / Constant Voltage
 End-of charge voltage14,6V
 Nepārtraukta uzlādes strāva50A
 Maximum charge current70A


Standarta
Izlāde

Nepārtraukta izlādes strāva100A
 Maximum discharge current (< 3s)150A (3S)
 End-of discharge voltage9,2V


Environment

Charge temperature range0°C to +50°C
 Discharge temperature range-20 ℃ ~ 55 ℃
 Uzglabāšanas temperatūra0°C- +50°C @60±25% relative humidity
MehānisksCell assembly3.2v 100ah prismatic LifePO4
 Casing materialABS Case
 Izmēripielāgot
 Svars12kg

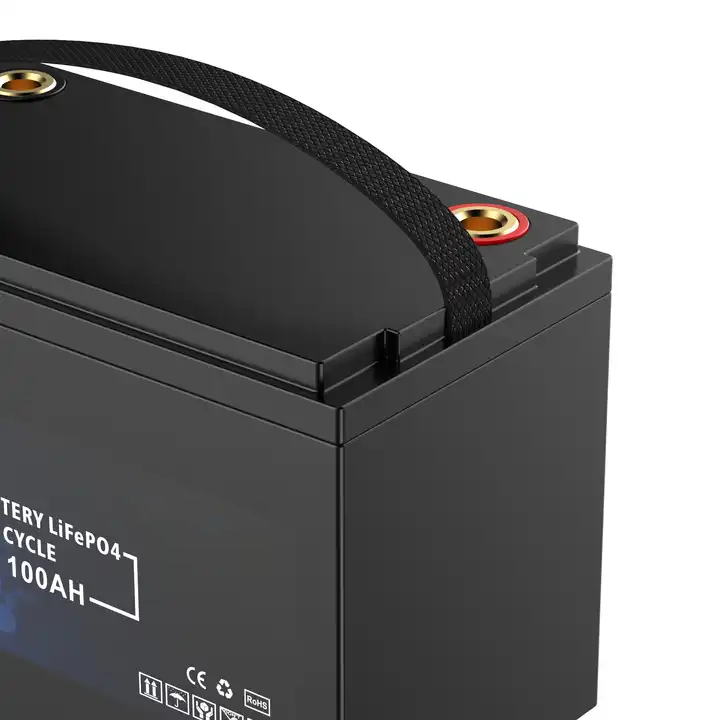

 TerminālsM8






Battery Protection Management System

BMS funkcija

Built-in 100A BMS

Automatic Functions
Low Voltage Disconnect
Short Circuit Protection
Over Voltage Protection
Over Current Protection
Pārslodzes aizsardzība
Over Discharge Protection
Over Temperature Protection
Internal Cell Balancing

Garantija5 Years warranty, In use process, if the product quality problems will be free replacement parts.Our company will replace any defective item free of charge.
PieteikumsSolar Energy,Solar Street Light,Wind Energy,Household Energy,RV campers, Marine,Trolling Motor, Replace lead-acid batteries, LED light, Backup battery, Power battery.
OEM / ODMSticker/ Logo/ package / connector
SertifikācijaCE, MSDS and UN38.3, etc

AIN12-100 LifePO4 battery pack use the grade A  LifePO4 battery, whose life span is 10 times longer than the traditional lead acid batteries, and it is lighter. For the capacity, Lifepo4 batteries can provide twice the battery capacity in the same amount of space. With operating ranges from -40 to 158 degrees Fahrenheit, LifePO4 handle far wider variations in temperature.

Pieteikums

AIN-12 series battery pack can provide power for various equipment, such as the golf carts, RV, electric boat, street light and etc. With high capacity, which can meet all kinds of demands.

♦ Saules vēja enerģijas sistēma
♦ Power tools: electric drills, toys Energy Storage
♦ City Grid (On/Off) Back-up solar System and UPS
♦ Drošība un elektronika, mobilā POS, Mining Lihgt / Torch / LED Light / Avārijas gaisma
♦ Telcom bāze, CATV sistēma, datoru serveru centrs, medicīnas instrumenti, militārā aprīkojuma citas lietojumprogrammas
♦ Commercial Bus and Transit: E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel
chair, E-truck, E-sweeper, Floor cleaner, E-walker etc.



Mūsu kompānija

Iepakošana un piegāde

Piegādes laiks
Normally delivery within 7-20days, but can arrange in advance if order confirm or produce faster according to quantity or other reason.
Maksājums
1. We accept T/T , PAYPAL , Western Union, Cash and so on

2. FOB , EXW and CIF all are available
3. Samples can accept Paypal.
Shipping way
DHL, UPS, FedEx, Special Line, Sea shipping, Customer own forwarder

BUJ

Q1: Can I get free samples?

A1: Generally, we do not provide free samples, but we can refund the sample cost when buyers place bulk orders.

Q2: If we place an order, how long is the delivery time?

A2: It depends on the order quantity. Usually, for small orders, we can deliver within 3-5 working days. For bulk orders, let us confirm when we place the official order.

Q3: What are your payment and delivery terms?

A3: Payment terms: via T/T, 30% deposit and balance all before shipment. For small amounts, we also accept payment via PayPal.

Q4: Which company will be used for shipment, DHL, UPS or others?

A4: Usually, we ship batteries via DHL, UPS and FedEx.

Q5: What kind of packages do you ship? Can I have a customized package?

A5:We have factory current standard package, custom printed logo should meet the buyer's requirement, extra cost will be borne by the buyer, for more details, please contact us.

Q6: Your factory or trading company?

A6: We are a professional battery manufacturer with our own factory and brand. We provide various OEM / ODM services to our customers all over the world.

Q7: Where is your company's main market?

A7: Our company focuses on North America, Europe, Korea and Japan market for high quality batteries.

Q8: What are your advantages compared to other suppliers?

A8 a) High quality batteries: Our batteries have sufficient capacity and low RI. Before shipping, we will check the products and make sure the quality is approved by customers.

A8 b) Better service: We always provide what our customers need. Promptly respond to customer's questions. We provide the best project solution for our customers. We ship on time.

9. jautājums: vai mēs varam apmeklēt jūsu rūpnīcu pirms pasūtījuma veikšanas?

A9: Of course no problem, we are always welcome to visit our factory.

Piezīme: Mēs esam akumulatoru ražotājs. Visi produkti neatbalsta mazumtirdzniecību, mēs veicam tikai B2B biznesu. Lūdzu, sazinieties ar mums, lai uzzinātu produktu cenas!
