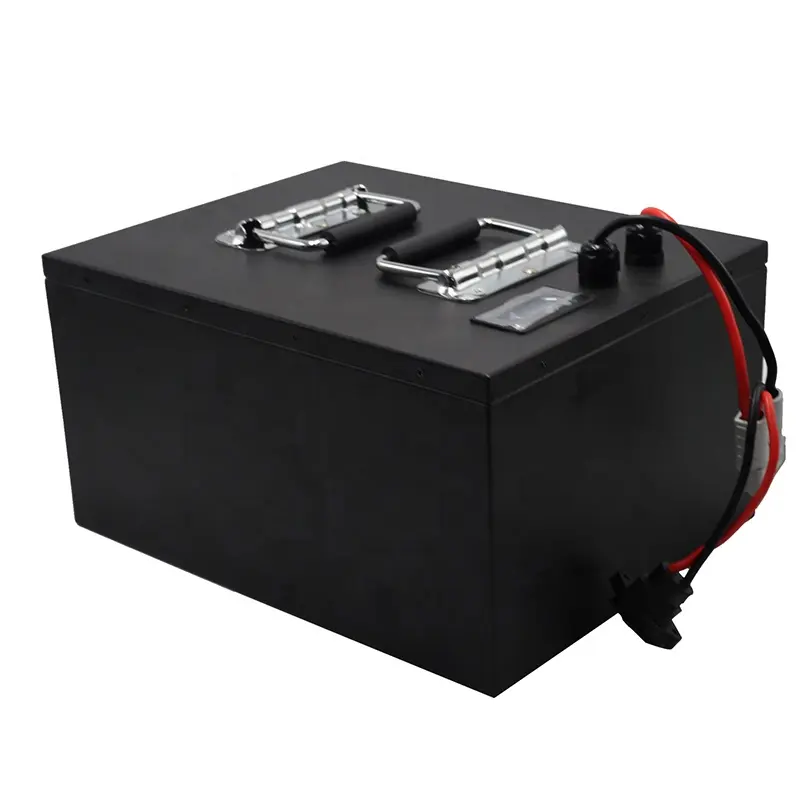

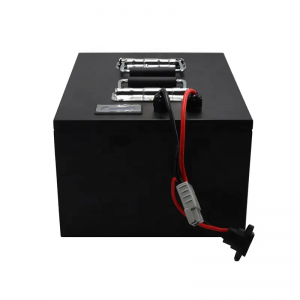

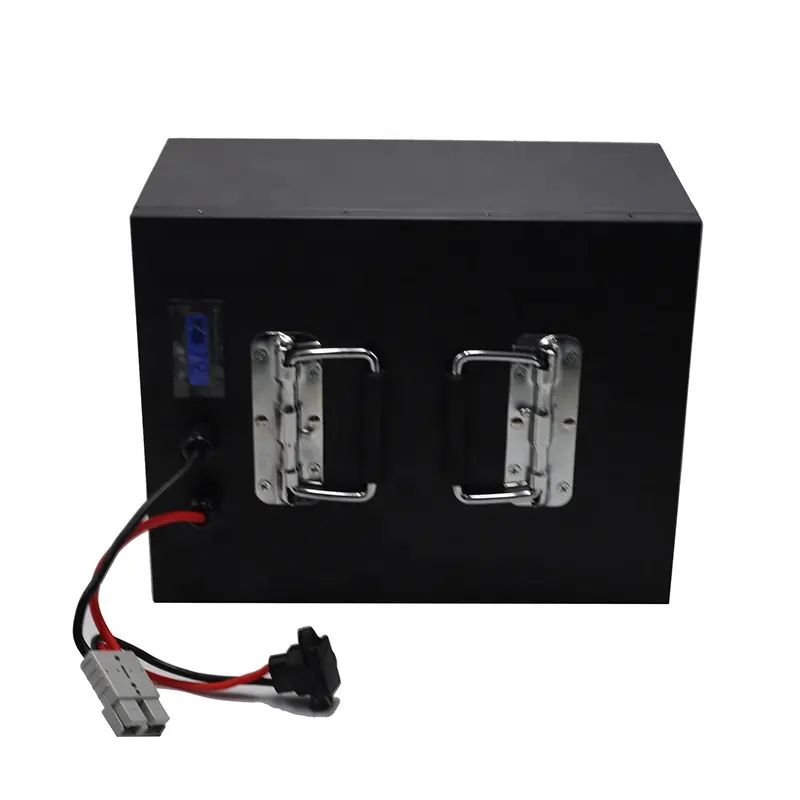

Pielāgots LiFePO4 akumulatoru komplekts 72v 60ah elektrisko transportlīdzekļu akumulators litija jonu komplekts EV automašīnām

2023-06-06 02:13

Specifikācija

Zīmola nosaukums	VISS VIENĀ
Modelis	AIN7260
Garantija	5 gadi
Nominālais spriegums	76,8V
Nominālā ietilpība	[email protected]/customize
Enerģija	4416Wh
Iekšējā pretestība	≤50mΩ
Cikla dzīve	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Pašizlāde	≤3,5% mēnesī pie 25 ℃
Maks. Lādēšanas spriegums	87.6 V
Uzlādes režīms	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Uzlādes strāva	30A
Maks. Lādēšanas strāva	60A
Izlādes strāva	30A
Max. discharge Continuous Current	60A
Maks. Impulsa strāva	120A(<3S）
Griešanas sprieguma izlāde	60V
Uzlādes temperatūra	0 ℃ līdz 45 ℃ (32 ℉ līdz 113 ℉) @ 60 ± 25% relatīvais mitrums
Izlādes temperatūra	-20 ℃ līdz 60 ℃ (-4 ℉ līdz 140 ℉) @ 60 ± 25% relatīvais mitrums
Uzglabāšanas temperatūra	0 ℃ līdz 45 ℃ (32 ℉ līdz 113 ℉) @ 60 ± 25% relatīvais mitrums
Ūdens putekļu izturība	IP55
Šūna un formāts	LFP  60AH 24S1P/customize
Apvalks	Metal Case
Izmēri (L * W * H * TH)	pielāgot
Svars	50kg
Termināls	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
Uzlādes metode	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
Sertifikāts	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Atgādinājums

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Pieteikums

Mūsu rūpnīca

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Iepakošana un piegāde

Iesaiņošana

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Piegāde

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



BUJ

J: Kā man maksāt? Kādus maksājuma veidus jūs pieņemat?
A: T/T, PayPal, Western Union.

J: Vai parauga pasūtījums ir pieņemams?
A: Jā, lielākajai daļai akumulatoru paraugu pasūtījumi kvalitātes pārbaudei ir pamatoti un pieņemami.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

J: Kāda ir jūsu garantija?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Par bojājumiem, kas radušies, piemēram, akumulatora izliekums/metināts, akumulators bez aizsardzības BMS, ko izraisa uzlāde.
